Measurement report diagrams

A carousel of source-report evidence for the Roof Job Brief: roof shape, area, lineals, slope, and BOQ cross-checks.

These diagrams support pricing review and reconciliation. They do not override the verified Takeoff Lite quantity basis when report headline values conflict with traced geometry.

01 3D Image 02 Area Diagram 03 Dimension Diagram 04 Length Diagram 05 Slope Diagram

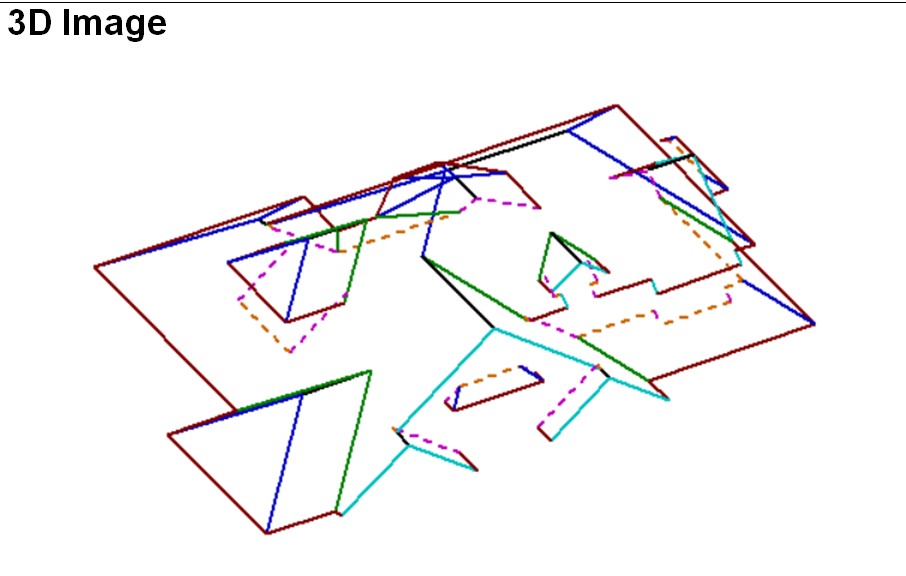

3D Image from the roof measurement report — 3D ImageSpatial model showing the roof-line geometry as a shape check.

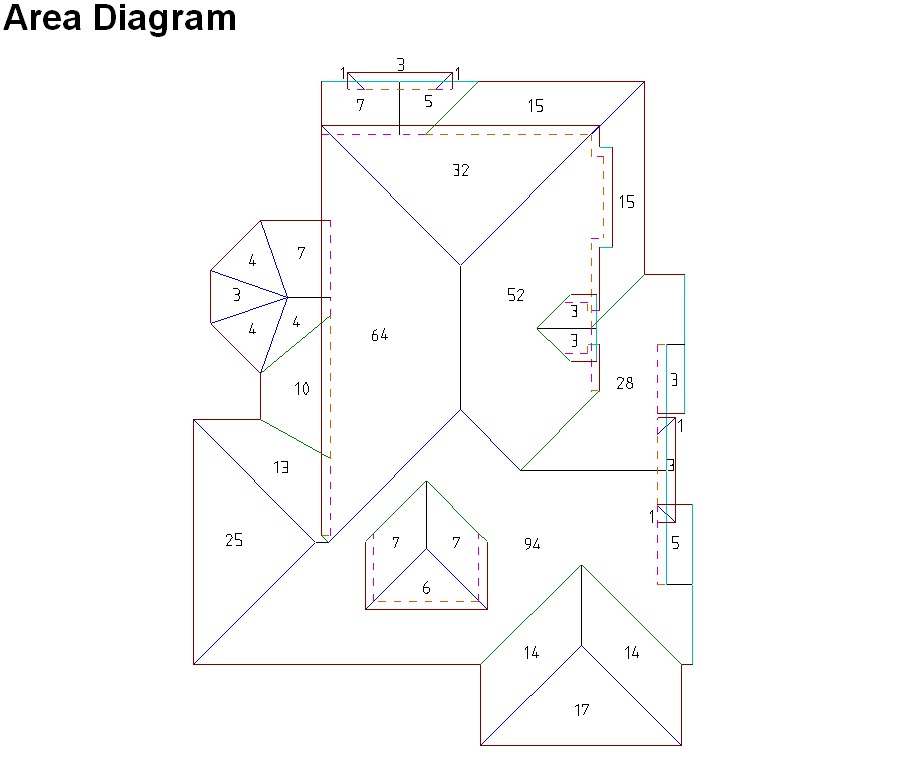

Area Diagram from the roof measurement report — Area DiagramPlane-by-plane area report for source reconciliation.

Dimension Diagram from the roof measurement report — Dimension DiagramLabeled roof-line classes for pricing review.

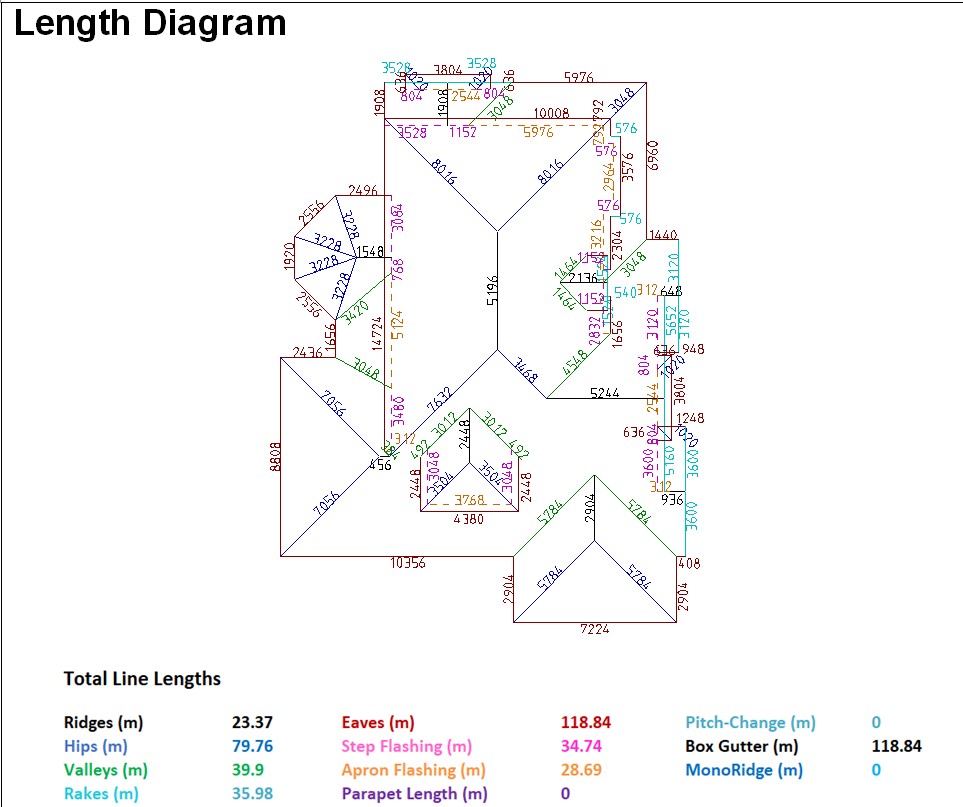

Length Diagram from the roof measurement report — Length DiagramLine-length totals for BOQ cross-checks.

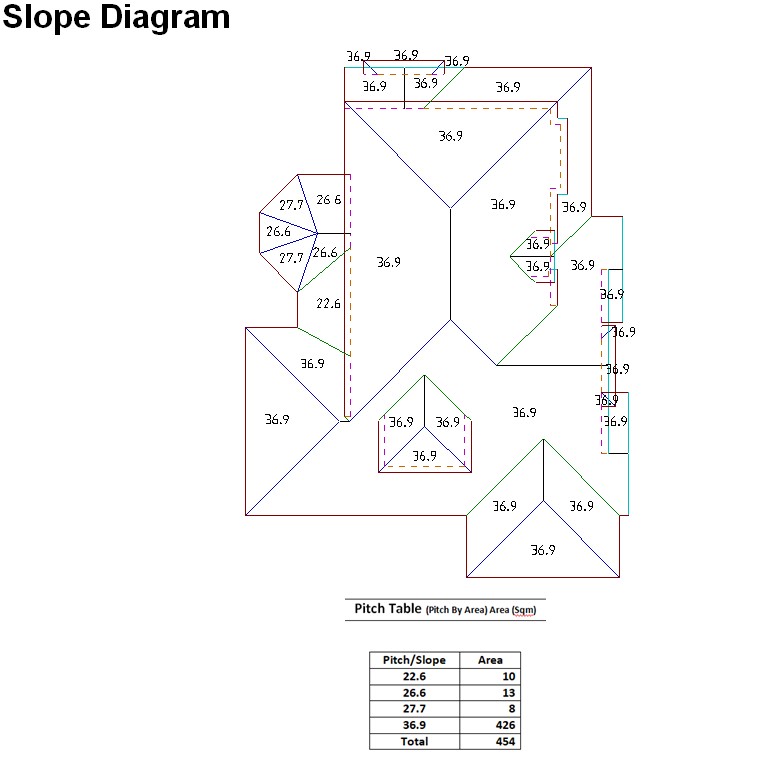

Slope Diagram from the roof measurement report — Slope DiagramPitch table by roof plane for review evidence.
